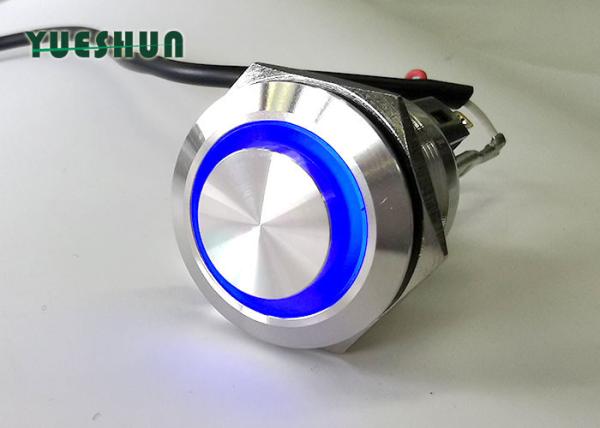

High Round Head Push Button Switch LED Illuminated , 22mm Illuminated Push Button

Name: High Round Head Push Button Switch LED Illuminated 22mm Illuminated Push Button
Brand: YUESHUN
Price: 1 USD

Brand Name : YUESHUN

Model Number : JS22H-11E

Certification : CE RoHS

Place of Origin : Wenzhou, China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T to our company account or by paypal

Supply Ability : 5000Pcs/Day

Delivery Time : 3-7 work days

Packaging Details : The product is packed in foam box to prevent damage during transportation.

Led Type : Ring Symbol

LED life : More than 40,000 hours

Operation type : Momentary Latching

Operating Temperature : -20℃～+55℃

Terminal material : silver alloy

Panel mounting : 22mm

Contact Now

Metal High Round Head Push Button Switch LED Illuminated waterproof momentary 22mm push button

- We get CE and Rohs for all our push button switches. Our factory are focused on manufacturing pushbutton switches and indicator. We ensure you 2-year warranty. The products are applied for all kinds of power switch, outdoo appliaces, wet environment equipments.
- The illuminated pushbutton swithes are High-grade appearance and nice touch feeling, which is made of 304 stainless steel. If you need other materials please feel free to contact us.
- Protection Degree: IP67, IK08. Waterproof Protection Can be Used in Wet or Dusty Environment.

Product Attribute

Mounting hole Diameter	22mm	Mounting Panel Thickness	Momentary 1-8mm Latching 1-13mm
Max.Switch Rating	5A / 250V AC	Protection Level	IP67
Operation type	Momentary Latching	Contact Configuration	1NO + 1NC 2NO + 2NC
Body Material	Stainless steel	Operation Distance	About 3.1 mm
LED	LED Color	Red,Green,Yellow,Orange,Blue,White,Purple or Double color mixing Can be customized.
	Led Voltage	3V 6V 12V 24V 36V 110V 220V are available.
	LED Type	Ring Symbol

Product Tags:

led metal push button momentary power switch

led light push button switch
