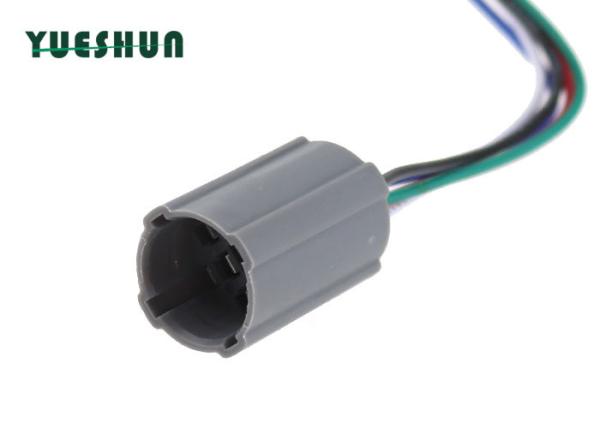

PBT Push Button Switch Socket Connector , Push Button Switch Connector Socket Plug

Name: PBT Push Button Switch Socket Connector Push Button Switch Connector Socket Plug
Brand: YUESHUN
Price: 1 USD

Brand Name : YUESHUN

Model Number : D16-15

Certification : CE RoHS

Place of Origin : Wenzhou, China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T to our company account or by paypal

Supply Ability : 5000Pcs/Day

Delivery Time : 3-7 work days

Packaging Details : The product is packed in foam box to prevent damage during transportation.

Wire length : 15 cm

Mounting Hole : 16 mm

Application : PCB, Automotive, signal connector, FPC, Audio & Video

Type : Adapter, FPC connector, Push push type, RJ45, Other

Material : PBT

Operation type : Momentary Maintained

Contact Now

PBT Push Button Switch Socket Connector , Push Button Switch Connector Socket Plug

Product Feature :

- This is a very good connector, with it, you can more easily link the push button switch, no need to weld.

- This connector is specially customized for the 16mm perforated metal button produced by our factory. It is only suitable for the push button produced by our factory. It is not universal

Product Specification

Product Name	16mm push button switch socket
Model Number	D16-15
Mounting Hole	16mm
Material	Plastic
Wire Length	15cm
Wire Number	5
Wire connection guidance	Red	+
	Black	-
	Green	NO
	Blue	NC
	White	C
Wire specifications:	0.75mm²,Contact Current Max 5A
Range of Application:	Our factory model starts "LA16" push button switches.Such as LA16F-11E/S,LA16F-11Z/S,LA16F-11ZY/L.LA16-11ZEY/N and so on.

How To Use

PBT Push Button Switch Socket Connector , Push Button Switch Connector Socket Plug

Size Diagram:

PBT Push Button Switch Socket Connector , Push Button Switch Connector Socket Plug
